TE CONNECTIVITY 55A1121-24-0/9-9 55A Multicore Harsh Environment Wire - White
100mtr Reel

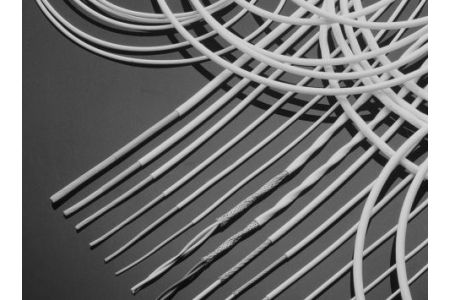

55 wire is insulated with modified radiation cross-linked ETFE polymer and combines the easy handling of a flexible thin wall wire, with excellent scrape abrasion and cut-through characteristics.
The single wall construction is currently used extensively throughout industry, applications include commercial wiring, avionics, satellites, aircraft, helicopters, ships, trains, offshore platforms and high performance military and motorsport electronics or wherever there is a demand for reliable performance under extreme conditions. The dual wall airfame construction is commonly used on numerous commerical and military aircraft programmes throughout the world.
Product Facts:
- Resistant to electrical arc tracking in wet or dry conditions
- Single or dual wall constructions
- Small size, ultra light weight
- Exceptional chemical resistance
Operating Temperatures
• -65ºC to +200ºC (Silver/Nickel plated conductors)
• -65ºC to +150ºC (Tin plated conductors - standard)
| Quick Search Code | 103083 |
|---|
• SAE AS22759/32-35 & 41-46 (wires)
• NEMA-WC-27500 (cables)
• Def Stan 61-12, Part 33
• VG95218 Part 20, Type 21, Type A; Part 22, Type A; Part 23, Type A; Part 1001 & 1002
• VDE 9426, 9427, 9428
• British Standards 3G233
• Boeing BMS 13-48
• Airbus ABS 0820 to 0826
• NASA preferred product list
• European Space Agency 3901/020, 3901/022 & 3901/012
Popular Specifications
55A0111-XX-X 600V Primary wire, Equipment and Interconnect
55A0814-XX-X 600V Primary wire, Airframe
55M0414-XX-X 450V Primary wire, Light weight equipment
55A0121-XX-X 600V Twisted pair Equipment and Interconnect
55A0824-XX-X 600V Twisted pair, Airframe
55M0424-XX-X 450V Twisted pair, Light weight equipment
55A1111-XX-X 600V Single core screened and jacketed equipment and interconnect
55A1814-XX-X 600V Single core screened and jacketed, airframe
55M1414-XX-X 450V Single core screened and jacketed, Light weight equipment
55A1121-XX-X 600V Two core screened and jacketed equipment and interconnect
55A1814-XX-X 600V Two core screened and jacketed, airframe
55M1424-XX-X 450V Two core screened and jacketed, Light weight equipment
55A1131-XX-X 600V Three core screened and jacketed equipment and interconnect
Defence Standard 61-12 Part 33/001 also available
55D0111-XX-X 600V Primary wire, Equipment and Interconnect
