Twinflex Highly Flexible Automotive Battery Cable - 50mm²

In stock

Only %1 left

SKU : HTP-TWINFLEX-TF50-CABLE

Not Set

As low as £17.69 £21.23

CUT TO LENGTH, NO WASTE! Order ANY Quantity upwards in increments of 1 mtrs.

Order in multiples of 1 mtrs to receive a continuous length, up to the next price break at 5 mtrs.

Please click the variations below to add to your product selection

Qty

0 Items in your selection £0.00 Selection Total

Buy 5 for £26.39 £31.67 per and save 2%
Buy 10 for £26.19 £31.43 per and save 3%
Buy 15 for £25.69 £30.83 per and save 5%
Buy 25 for £25.29 £30.35 per and save 6%

Skip to the end of the images gallery

Skip to the beginning of the images gallery

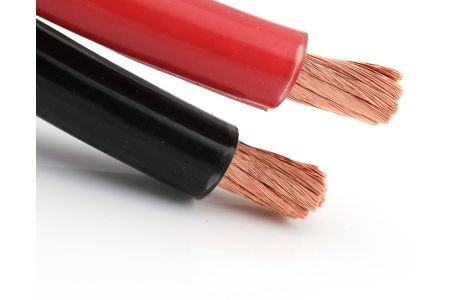

Twinflex is two highly flexible, double-insulated battery cables joined together by a clear outer sheath in a figure of eight configuration. Used in vehicle and automation applications, suitable for electric forklifts. Offered in both 35mm and 50mm diameters on 25m length reels. It is two battery cables joined together by a clear outer sheath in a figure of eight configuration.

Details

Twinflex Highly Flexible Automotive Battery Cable - 50mm²

Highly flexible
For both indoor and outdoor use
Meets RoSH and REACH Compliance
Neater and easier to use than taping wire together

Twinflex cable is designed for installation both indoors and outdoors, in wet and dry locations.

Twinflex battery cable is a highly flexible double-insulated dual-core cable with Class 6 extra flexible copper conductors. It has a figure of 8 configuration. It is suitable for motorised vehicles and battery-powered equipment such as forklifts and field conveyors. It is also suitable for use in high-quality booster cables.

Twinflex cable is suitable for the automotive industry such as forklifts and tail lifts.

Features and Benefits:

Voltage Rating Uo/U450/750V
Temperature Rating Flexed: -20°C to +70°C
Minimum Bending Radius Flexed: 6 x overall diameter

More Information

More Information
Quick Search Code	104929

Applications

For indoors and outdoors use
In dry as well as wet locations on motorised vehicles
Battery powered equipment such as forklifts and field conveyors
In High quality booster cables
Vehicle and automation applications

Specification

Nom Cross Section (mm²)	No. Of Cores	Nom Thickness of Insulation (mm)	Nom Thickness of Sheath (mm)	Mon Overall Diameter (mm)	Nom Weight (kg)
35	2	1.1	1.3	12.4 x 25.9	824
50	2	1.2	1.4	14.5 x 30.5	1132
