DSG Deray IAKT 19/6 Clear Adhesive Lined Heat Shrink

In stock
Only %1 left
SKU : IAKT-19/6-X-SP
Not Set
As low as £2.99 £3.59

Order in multiples of 1 mtrs to receive a continuous length, up to the next price break at 5 mtrs

For example, 4 x 1 mtrs will be delivered as a continuous 4 mtr length

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Add to Compare
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

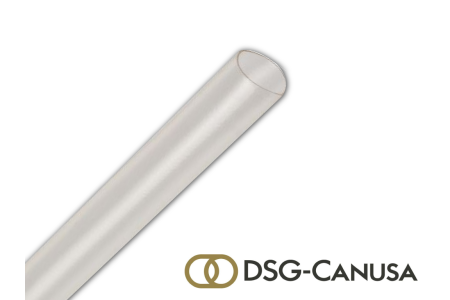

main product photo

Our DSG Branded Clear 19mm IAKT Semi-flexible heat shrinkable tubing is manufactured with a meltable adhesive inner lining, providing the ultimate resistance to moisture.

Details

 DSG DERAY® IAKT size 19.0 / 6.0 Adhesive-Lined Heat Shrink

Adhesive-lined heat shrink tubing ideal for effective moisture-resistant insulation.

Features and Benefits

  • Flexible
  • High shrink ratio
  • Adhesive bonds to plastics, rubber, neoprene, steel and polyethene
  • Continuous operating temperature: -55°C to 110°C
  • Shrink temperature: 95°C

 Typical Applications

  • Environmental sealing and strain relief of connectors and terminals
  • Moisture sealing and electrical insulation of simple in-line splices
  • Abrasion resistance for tubes and pipes
  • Repair of damaged wire harnesses
More Information
More Information
Quick Search Code 104890
Applications

  • Environmental sealing and strain relief of connectors and terminals

  • Moisture sealing and electrical insulation of simple in-line splices

  • Abrasion resistance for tubes and pipes

  • Repair of damaged wire harnesses

Specification
Technical Data Current Values Test Methods
                    Physical
Tensile Strength 1,500 psi (10 MPa) ASTM D2671, IEC 811-1-1
Elongation 200% ASTM D2671, IEC 811-1-1
Longitudinal Shrinkage 3.1 - 15% max ASTM D792
Specific Gravity 125g/cm³ max ASTM D792
Heat Resistant Properties (168 hr at 150°C) No cracking or flowing ASTM D2671, IEC 811-1-1
Heat Shock (160 hr at 200°C) No cracking or flowing ASTM D2671, IEC 811-1-2
Low Temperature Flexibility (4 hr at -55°C) No cracking or flowing ASTM D2671
Flammability Flame Retardant (except clear) ASTM D2671
                   Chemical
Fluid Resistivity  Good n/a
Copper Corrosion No corrosion ASTM D2671, Method A and B
Water Absorption 0.5% max ASTM D670, VDE 04672
Fungus Resistance Very good ISO 846
                   Electrical
Dielectric Strength 500 V/mil (20 kV/mm) ASTM D2671, VDE 0303
Spec. volume resistivity  10¹³ ohm-cm ASTM D2671, VDE 0303
Downloads
File Icon IAKT Specification Sheet (111.16 kB)
