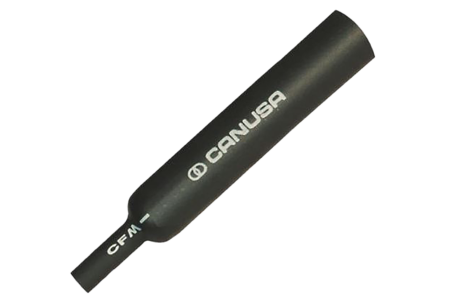

CFM 1500 Size 38.1/12.7 None Adhesive Lined Black Heat Shrink
CFM 1500 none adhesive heat shrink is ideal for a wide range of low-voltage electrical and mechanical applications where increased flexibility and reduced weight are crucial. The medium wall heat shrink is especially well-suited for cable repair as well as insulation and joint protection. It is designed to provide excellent coverage and sealing for cable splices and terminations.
-
3:1 shrink ratio
-
Resilient to moisture and chemicals
-
Medium Wall Cross-Linked Polyolefin
-
Withstands mechanical stress for higher product reliability
Pack quantities are different and will appear once you have selected your size
CFM 1500 Size 38.1/12.7 None Adhesive Lined
CFM is a specialist solution that has been designed to suit a wide range of low-voltage applications, due to its unique blend of flexibility and toughness, it is very useful for protecting and insulating cable joints in low-voltage electrical systems. It's also a great choice for cable maintenance jobs.
It has the ability to withstand severe mechanical stress and abrasion. This feature considerably increases the product's overall durability and dependability by making sure it is able to endure any kind of abrasion that may arise over the course of its application.
One indication of its resilience is its strong resistance to impacts and abrasions. This characteristic is especially useful for protecting the structural integrity of the cables and the wires it shields from harsh environments.
Installing it is simple and quick, requiring only a heat gun or torch, which makes it a useful option for experts in the industry, because of its high shrink ratio 3:1, it can easily conform to the shapes of cables and uneven substrates.
Features and Benefits:
- CFM 1500
- UV Resistant
- Medium Wall
- RoHS compliant
- 3:1 Shrink Ratio
- Quick and efficient installation
- Provides reliable electrical insulation
- Shrink Temperature: 120°C min
- Continuous Operating Temperature: -55°C to 110°C
Quick Search Code | 104698 |
---|
-
Splice covers for electrical cables
-
HVAC systems for pipes and ducts
-
Strain relief and environmental protection
-
Insulation cover or jacket repair on low-voltage cables
-
Provides mechanical protection against abrasion, vibration, and impact
-
It is used for repair and maintenance tasks, such as fixing damaged cable insulation or reinforcing weak spots in wiring.
-
The adhesive-lined heat shrink has excellent moisture sealing properties and is used to seal connections and joints in outdoor applications
Reference | Expanded | Recovered | Application Range | |||||
Internal DIA (min) | Internal DIA (max) | Total Wall Thickness (nom) | General Use | |||||
MM | IN | MM | IN | MM | IN | MM | IN | |
1500 | 38.1 | 1.50 | 12.7 | 0.50 | 2.4 | 0.095 | 14.0-35 | 0.55-1.4 |
1700 | 43.2 | 1.70 | 12.7 | 0.50 | 2.5 | 0.100 | 14.0-40 | 0.55-1.6 |
2050 | 52.1 | 2.05 | 19.1 | 0.75 | 2.5 | 0.100 | 21.0-45 | 0.82-1.8 |
2750 | 69.9 | 2.75 | 25.4 | 1.00 | 2.5 | 0.100 | 30.0-63 | 1.2-2.5 |
3500 | 88.9 | 3.50 | 29.9 | 1.18 | 2.5 | 0.100 | 33-83.8 | 1.3-3.3 |
4700 | 119.4 | 4.70 | 39.9 | 1.57 | 2.7 | 0.105 | 40.6-114 | 1.6-4.5 |
6000 | 152.4 | 6.00 | 50.8 | 2.00 | 3.00 | 0.120 | 53.3-147 | 2.1-5.8 |
6700 | 170.2 | 6.70 | 58.4 | 2.30 | 3.00 | 0.120 | 70.0-165 | 2.4-6.5 |
9000 | 228.6 | 9.00 | 77.00 | 3.00 | 3.30 | 0.130 | 71.0-220 | 2.8-8.7 |
-
