5 x 6mm² - PentaCore Screened Automotive High Voltage Electric Vehicle Cable | Coroplast 9-2641

In stock
SKU : ELECTRIC-VEHICLE-CAB-EV60-5C
£27.99 £33.59

Order in multiples of 1 mtrs to receive a continuous length, up to the next price break at 5 mtrs

For example, 4 x 1 mtrs will be delivered as a continuous 4 mtr length

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

  • Buy 5 for £27.49 £32.99 per and save 2%
  • Buy 10 for £26.99 £32.39 per and save 4%
  • Buy 25 for £26.49 £31.79 per and save 5%
  • Buy 50 for £25.99 £31.19 per and save 7%

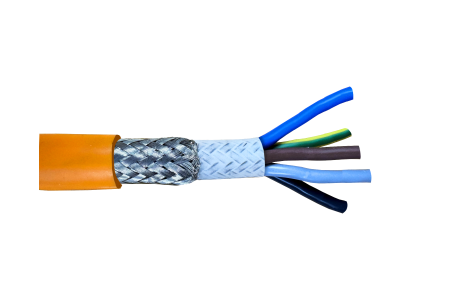

main product photo

6mm² 5 core Multi Stranded Coroplast 9-2641 Electric Vehicle Cable from premium German manufacturer Coroplast.  High voltage (HV), silicone insulated, Pentacore multi-stranded automotive cable for use in electric and hybrid vehicles for component interconnection.

This is a much more bespoke line and kept in limited stock availability, typically the lead time is around 2 weeks should replenishment be required, contact our sales team on 01942 723 101 or [email protected] for more information.

Show more

Details

Penta Core Silicone-insulated high-voltage (HV) cable  5 x 6mm² -  Coroplast 9-2641

Connection of HV batteries and electric engines (max. 600 V AC / 1,000 V DC)

This shielded orange cable is suitable for automotive electric powertrain HV connector assemblies, including KERS and ERS (Energy Recovery Systems). It also combines high voltage load handling, EMC shielding and exceptional flexibility required for various automotive applications. Insulated screened orange HV cable for use on electric and hybrid vehicles.

Specification:

  • Coroplast 9-2641
  • Green/Yellow, Brown, Red, Blue, Black Cores.
  • Suitable for Max 600V AC / 1000V DC
  • Plain copper conductors
  • Tinned copper screening braid and ALU-PET foiled shielding for excellent EMC performance
  • Silicone rubber insulated
  • Suitable for use at temperatures from -40°C to +180°C with excursions up to 205°C
  • Low cross-sectional area for any application, reducing weight and construction room
  • Technical data sheet available on request
  • The conductor specifications shown are representative configurations. Actual cable strand may differ slightly

FH­L2G­CB2G/ FHL­R2G­CB2G

  • Silicone-insulated
  • -40 °C to +180 °C
  • 2,50 mm² to 95,00 mm²
  • Foil and braided screen
  • Copper
  • Connection of HV batteries and electric engines (max. 600 V AC / 1,000 V DC)
More Information
More Information
Quick Search Code 104594
Specification

High-voltage Copper Cables, Multi-Core, Shielded

Coroflex CORES CORE OUTER SHEATH RESISTANCE (d.c. 20 °C) (max.) CABLE WEIGHT
TYPE NO. NO. SIZE DIAMETER [mm] DIAMETER [mm] CONDUCTOR [mΩ/m] SCREEN [mΩ/m] approx. [g/m]
9-2641 2 x 2.5 mm² 3.00 -0.3 9.90 -0.6 7.8 6.5 160
9-2641 3 x 2.5 mm² 3.00 -0.3 10.40 -0.6 7.8 7.7 186
9-2641 4 x 2.5 mm² 3.00 -0.3 11.10 -0.6 7.8 7.0 223
9-2641 5 x 2.5 mm² 3.00 -0.3 12.10 -0.6 7.8 5.3 271
9-2641 2 x 4.0 mm² 3.70 -0.3 11.30 -0.6 4.8 6.1 220
9-2641 3 x 4.0 mm² 3.70 -0.3 12.10 -0.6 4.8 5.3 268
9-2641 4 x 4.0 mm² 3.70 -0.3 13.30 -0.6 4.8 4.4 330
9-2641 5 x 4.0 mm² 3.70 -0.3 14.50 -0.6 4.8 3.2 410
9-2641 2 x 6.0 mm² 3.70 -0.3 12.80 -0.6 3.2 5.4 290
9-2641 3 x 6.0 mm² 3.70 -0.3 14.10 -0.6 3.2 3.4 390
9-2641 4 x 6.0 mm² 3.70 -0.3 15.10 -0.6 3.2 3.4 453
9-2641 5 x 6.0 mm² 3.70 -0.3 16.30 -0.6 3.2 3.1 540
Downloads

Specification sheets are readily available upon request, please contact [email protected] or call on 01942 723 101 for more details.
