Harnessflex® Fast-Fit Type C90 90° Elbow Fitting

In stock
Only %1 left
SKU : HTS-FASTFITRANGE-90DEGREE
As low as £4.99 £4.99 Regular Price £5.99

Please see above for size options.

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Add to Compare
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

main product photo

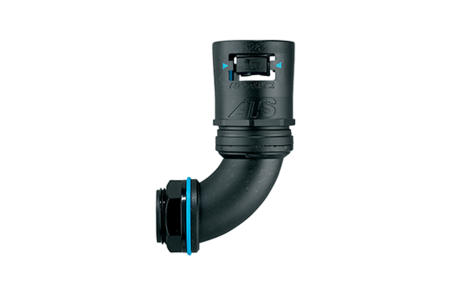

Harnessflex Fast-Fit Type C90 90° Elbow waterproof conduit fitting is a unique and innovative solution for providing maximum cable protection with effortless installation when interfacing unsplit conduit with a bulkhead or other flat surface. Simply push and rotate the conduit firmly into the fitting and connect to a bulkhead via the male thread and nut.

Compatible with all Harnessflex NC Unsplit Conduits.

  • One piece design with integrated conduit and thread sealing

  • Provides continuation of cable protection between conduit and cable entry points

  • High level of mechanical protection and highest degree of ingress protection against solids and liquids

  • External male thread for insertion into metric threaded entries or knockout holes

  • Conduit and thread size indicators moulded-in for reference

Show more

Details

Harnessflex® Fast-Fit uses a sophisticated moulding process to mould an internal conduit seal and a face seal washer. This makes installation times very fast, and extremely reliable, because the seals cannot be left out. The conduit system also benefits from the highest IP rating possible.

Until now, manufacturers have produced fittings and seals separately, and assembled them together, or had the customer assemble them. This increases assembly time and introduces the possibility for errors. With the new Fast-Fit range this is a thing of the past. Combining an over-moulded elastomer into the body of the fitting has enabled a one-piece design, sealing around both the conduit and against the mounting surface. This provides quicker and easier installation compared with previous fittings whilst still providing high levels of waterproofing and mechanical protection, and minimising assembly errors

For simple, safe removal use a Harnessflex Fast-Fit Removal Tool.

Key features:

  • Nylon 66 body

  • Lighter in weight

  • Quicker to install (cut & assemble fittings)

  • Wide variety of sizes

  • Better fatigue life

  • Return to shape

  • IP66-68 Rated

  • Secure Conduit Chip Design

  • Lock nuts Included



Applications

  • Construction vehicles

  • Agricultural machinery

  • Trucks

  • Heavy duty and special purpose vehicles

Specification

Material:

  • Polyamide 6,6 (Nylon) body / TPE Seals

  • Very high UV resistance

  • Heat stabilised (Self-extinguishing, low smoke toxicity & halogen free)



Ingress protection:

  • IP66 / 67 / 68 (2 bar 30 mins) / 69K



Compatible conduits:

  • All Harnessflex NC conduits



Conformity:

  • CE Mark to the low voltage directive

  • RoHS Compliant to 2011/65/EU

  • Conforms with end of life vehicle directive (ELV) EU200/53/EC



Temperature range:

  • Static Long Term -50°C to +105°C

  • Static Short Term (3000 Hours) -50°C to +120°C

  • Dynamic Long Term -45°C to +105°C

  • Dynamic Short Term (5000 operations @MBR) -45°C to +120°C



Part no  conduit size (NC) Conduit Size (NW) Metric Thread
HTS12/M16/C90 12 10 M16 x 1.5
HTS16/M16/C90 16 13 M16 x 1.5
HTS16/M20/C90 16 13 M20 x 1.5
HTS20/M20/C90 20 17 M20 x 1.5
HTS25/M25/C90 25 23 M25 x 1.5
HTS32/M32/C90 32 29 M32 x 1.5
HTS40/M40/C90 40 36 M40 x 1.5
HTS50/M50/C90 50 48 M50 x 1.5
