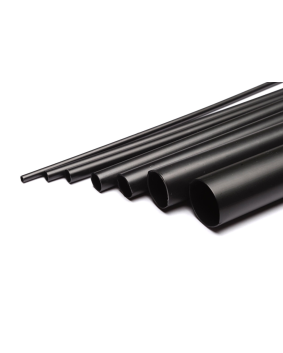

SCL-4.8-0-STK TE Connectivity size 4.8/1.5mm (3/16”) Semi-rigid Adhesive Lined - Commercial Grade

In stock
SKU : HTP-SCL-4.8-0-STK
Not Set
£5.49 £6.59

Supplied on 1.2 mtr sticks as standard. For example, order 3.6 Mtrs to receive 3x 1.2mtr sticks.

Various price breaks are available, see above for more information.

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Add to Compare
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

main product photo

Raychem TE Connectivity SCL is designed to provide one-step moisture-proof encapsulation of a wide variety of electrical parts including wire splices, breakouts, and electronic components. The encapsulant melts and flows to fill surface irregularities of the substrate.

Details

SCL-4.8-0-STK TE Connectivity size 4.8/1.5mm (3/16”) Semi-rigid Adhesive Lined

  • High Quality

  • Semi-Rigid Flexibility

  • High Dielectric Strength

  • Supplied in 1.2 mtr lengths

  • Commercial Grade Version of: SCL-3/16-0-STK

Encapsulates components, splices, and terminations where moisture resistance and mechanical protection are required. The encapsulant melts and flows to fill surface irregularities of the substrate. While still hot, the tubing can be blocked to form a wire breakout.

Raychem TE Connectivity SCL is designed to provide one-step moisture-proof encapsulation of a wide variety of electrical parts including wire splices, breakouts, and electronic components.

Manufactured from radiation cross-linked polyolefins, SCL has an inner wall, which melts at 100°C, and is forced into the crevices and interstices by the shrinking action of the outer tubing. When cooled, the entire mass becomes a rigid, tough, homogeneous covering with controlled wall thickness. SCL shrinks between 17% and 40% of its supplied diameter according to size and therefore few sizes are required to cover a range of irregular shapes with widely varying dimensions.

Unaffected by most solvents and chemicals and non-corrosive in contact with electrical joints, SCL also has high dielectric strength.

Other sizes are available upon request.

Features and Benefits:

  • 3:1 Shrink Ratio
  • TE Connectivity
  • RoSH Compliant
  • Excellent strain relief and insulation of weak points
  • Rugged protection against abrasion, vibration, and flexing
  • Splash-resistant, moisture-resistant covering; not intended for use where immersion in fluids is required
More Information
More Information
Quick Search Code 104123
Applications

  • SCL is used for encapsulating and protecting delicate electronic components

  • It is semi-rigid which helps to provide support while allowing flexibility for routing

  • It can be used for insulating connections, splices, and terminations in both indoor and outdoor environments

  • The tubing is resistant to vibration, moisture, and temperature changes and can be used in automotive applications to shield and insulate electrical wires, connections, and other components

Specification

  • 3:1 shrink ratio

  • Splash-resistant, moisture-resistant covering; not intended for use where immersion in fluids is required

  • Rugged protection against abrasion, vibration, and flexing

  • Excellent strain relief and insulation of weak points

  • RoHS compliant

  • TE Connectivity

Downloads
File Icon SCL Spec Sheet (83.00 kB)
