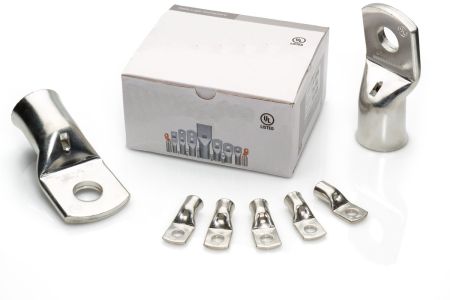

Hilltop High Grade Copper Tube Crimping Lugs 1.5mm² - 25mm²
High grade copper tube terminals have bell mouth entry for ease of cable insertion. All terminals have inspection holes to check cable is properly inserted before crimping. Manufactured from exceptional conductivity copper and coated in bright electro-tin plating to BS1872, which ensures maximum electrical performance by reducing resistance and increasing power transfer efficiency.
The dimensions of the tube are designed to obtain the most efficient electrical conductivity and mechanical strength to resist vibraton and pull out. In applications subject to vibration, lugs still have to provide a reliable connection and annealing plays a vital role in avoiding cracking or breaks between the barrel and palm.
The Lugs have been designed with precision in mind which ensures a secure and reliable connection between the lug and the conductor, this increases electrical conductivity but also provides a robust joint, decreasing the chance of disconnection or electrical faults.
With everything from the tiniest 1.5mm2 to 400mm2 Copper Tube terminals, Hilltop’s wide range and massive stocks are sure to meet your needs. In addition to the products listed on this page we are happy to discuss special copper terminals and your packaging requirements.
The presence of an inspection hole facilitates full insertion of the conductor, whilst the barrel length has been designed to allow easy and accurate positioning of the dies during the crimping operation. Lugs are electrolytically timplated to avoid oxidation.
Features & Benefits:
Purity: > 99%
Corrosion Resistant
Entry: Bell-mouth easy entry
High conductivity copper to BS 2871
Sizes above 400mm2 available on request
Coating: Bright electro-tin plating to BS 1872
Barrels: Internal Barrel diameters suit standard cables as defined in BS 6360
All terminals have inspection holes to check cable is properly inserted before crimping
Copper tube splices, four-hole transforming, fixing, long palm, right angle, blank terminals, copper pins, dissimilar copper splices and flag terminals also available on request.
Can't see the size you are looking for? Please contact our Sales team on 01942 723101 or e-mail on [email protected]
