HTAT 4:1 Adhesive Lined Heat Shrink size 12/3" Black HTAT-12/3-0-SP

In stock
SKU : HTAT-12/3-0-SP
£7.99 £9.59

Order in multiples of 1 mtrs to receive a continuous length, up to the next price break at 5 mtrs

For example, 4 x 1 mtrs will be delivered as a continuous 4 mtr length

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Back

  • Text
  • Number
  • Text & Number

Text Element

Text & Number Element

Number Element

Skip Personalisation | Request a Callback

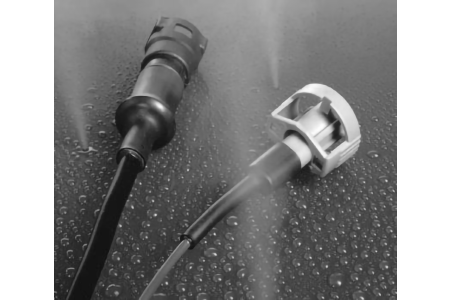

Our Flame Retardant Black Semi-Flexible Dual-Wall Heat Shrink has been specifically designed to offer superior environmental protection to a wide range of shapes with irregular dimensions due to its high shrink ratio. It is typically used to seal and protect the back shell of connectors, breakouts and connector to cable transition, as the high-temperature inner adhesive lining forms a strong bond to a variety of materials.

  • Flame retardant jacket

  • Perfect for awkwardly shaped connectors

  • High-strength bonding due to inner adhesive lining

  • Fit over larger connectors and still ensure environmental sealing

Show more

Semiflexible, Dual Wall (Adhesive Lined), Moisture-Resistant, Heat-Shrinkable Tubing

Designed to provide environmental sealing for a range of substrates, at elevated temperatures. Manufactured by Te Connectivity Electronics from radiation-crosslinked polyolefins, the inner wall melts when heated and is forced into interstices by the shrinking of the outer wall so that, when cooled, the substrate is encapsulated by a tough, protective moisture barrier.

An operating temperature range of -55°C to 125°C, and a high-shrink ratio as standard means that the tubing offers superior environmental protection to a wide range of irregular shapes with varying dimensions. The jacket is flame-retardant to reduce flame propagation.

Features and Benefits:

  • 4:1 shrink ratio
  • RoHS compliant
  • High-strength bonding
  • Environmental Sealing
  • Min shrink temperature: 80°C
  • Min full recovery temperature: 110°C
  • Operating temperature range: -55°C to 125°C
  • Well-suited connector sealing covering large diameter differences
More Information
Quick Search Code 103958
  • Used for electrical insulation

  • Provides a protective moisture barrier

  • Providing strain relief, and preventing damage

  • Used to protect and insulate splices in wires and cables

  • Provides environmental sealing for a range of substrates

  • It can insulate wires, cables, and electrical components, protecting them from chemicals and abrasion

  Inside Diameter Recovered Wall Thickness
  Size

Minimum Expanded

as Supplied

Maximum Recovered

After Heating

Nominal Total Wall

After Heating

Nominal Adhesive Wall

After Heating


12/3 12.0 [0.472] 3.0 [0.118] 1.40 [0.055] 0.60 [0.024]

Spec Sheet (0.98 MB)
