MG-CPM-02 Marker 41190N 5mm x 10mm White

In stock
SKU : MG-CPM-02-41190N
£119.99 £143.99

1680 Pc Pack

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Back

  • Text
  • Number
  • Text & Number

Text Element

Text & Number Element

Number Element

Skip Personalisation | Request a Callback

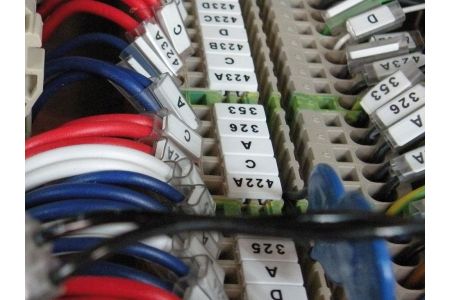

MG-CPM terminal block markers are available in versions to suit the particular clip formats of the most widely used products. Markers may be presented as joined strips at a set of flexible pitch or as separate markers to convenient individual insertion on mixed pitch terminal block assemblies, depending on the type.

MG-CPM-02 41190N White

This is a rectangular shaped clip with rounded corners, measuring at 5mm x 10mm.

  • Made from polycarbonate
  • Single clip strip form
  • 48 Markers per sheet
  • UL94 class V0
  • Operating temperatures from -40°C to 130 °C
  • Template - 991008



MG-CPM terminal block markers are available in versions to suit the particular clip formats of the most widely used products. Markers may be presented as joined strips at a set of flexible pitch or as separate markers to convenient individual insertion on mixed pitch terminal block assemblies, depending on the type.

They provide mechanical robustness, high dimensional stability and are silicon and halogen free.

Printing a complete sheet of MG-CPM markers on the MARKINGGENIUS thermal transfer printers takes around 10 seconds.





More Information
Quick Search Code 103642
  • • Panel Design & Building
  • • Crane Design & Building
  • • Industrial Machinery Builders
  • • Cable Harness Designers
  • • Industrial Automotive
Size 5mm x 10mm
Material Polycarbonate
Halogen Free Yes
Silicon free Yes
UL94 class V0
Min operating temperature range -40°C
Max operating temperature range 130°C
Geometric shape Rectangular clip with rounded corners
