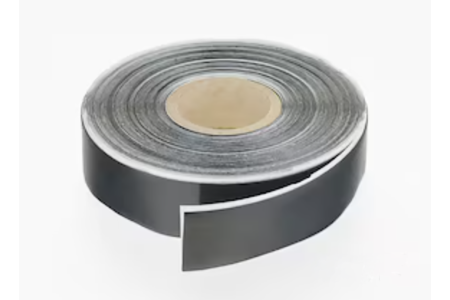

TE Connectivity / Raychem S1030 Heatshrink Hot Melt Tape

In stock
SKU : HTP-S1030-HEAT-SHRINK-TAPE
£2.49 £2.99

Supplied in 10 mtr rolls as standard, pricing is per meter.

Minimum Order quantity is 10 mtrs.

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Back

  • Text
  • Number
  • Text & Number

Text Element

Text & Number Element

Number Element

Skip Personalisation | Request a Callback

  • Buy 20 for £2.45 £2.94 per and save 2%
  • Buy 30 for £2.39 £2.87 per and save 4%
  • Buy 50 for £2.29 £2.75 per and save 8%
  • Buy 100 for £2.09 £2.51 per and save 16%
  • Buy 250 for £1.89 £2.27 per and save 24%

An adhesive Low Halogen tape made of polyolefin the non-flame retarded hot melt black adhesive tape is based on EVA/polyamide polymers. The adhesive is very user-friendly as the glue is simple to use the adhesive exhibits excellent flow very quickly when heated under normal conditions.

  • High Flexibility

  • Creates a water-tight Seal

  • Easy to use

  • Strong adherence to a variety of substrates

A flexible, polyolefin based adhesive Low Halogen tape which has High Flexibility at high temperatures. Non-flame retarded hot melt black adhesive tape which is based on EVA/polyamide polymers

Easy to use, adhesive exhibits excellent flow very quickly when heated under normal conditions. The adhesive is very user-friendly in that it exhibits excellent flow extremely quickly when heated under normal installation conditions. Not recommended where aggressive solvents may be present. Also not recommended for terminations under in-service flexural stress at temperatures above 40°C. S1030 exhibits good adhesion to a wide range of substrates and has become the recommended hot melt adhesive for System 100 ie. Zero Halogen tubing and cable jackets, -100 moulded shapes.

Recommended with -25 moulded shapes, DR25 Tubings, FDR cable jackets, RNF, RW-175, Polyurethane materials. Can be used as a repair adhesive in conjunction with RP-4800 tubing and also with S1081 harness repair tape.

Features and benefits:

  • High Flexibility

  • Operating temperature -80°C to +80°C

  • Easy to use

  • Polyolefin Adhesive

  • Low halogen

  • Strong adherence to a variety of substrates

  • The tape is often pre-applied to molded parts; its pre-coat designation is /180.

More Information
Quick Search Code 101852
  • S1030 Tape is recommended for marine applications where salt water is a threat.

Recommended with:

  • -25 moulded shapes

  • DR25 Tubings

  • FDR cable jackets

  • RNF

  • nRW-175

  • Polyurethane materials

Can also be used as a repair adhesive in conjunction with RP-4800 tubing and also with S1081 harness repair tape.

  • Operating temperature: -80°C to +80°C.

  • Specification: RK6017

  • Raychem RT-1050/6

  • 3/4 in. x 0.010 in. x 33 ft. roll (20 mm x 0.3 mm x 10 m roll)

  • Not recommended where aggressive solvents may be present.

  • Also not recommended for terminations under in-service flexural stress at temperatures above 40°C.
