Thin Wall Cable Single Core 28/0.30mm 25.0 amps TW2.0

In stock
Only %1 left
SKU : HTP-TW2-100
As low as £0.99 £1.19

Order in multiples of 1 mtrs to receive a continuous length, up to the next price break at 5 mtrs

For example, 4 x 1 mtrs will be delivered as a continuous 4 mtr length

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Add to Compare
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

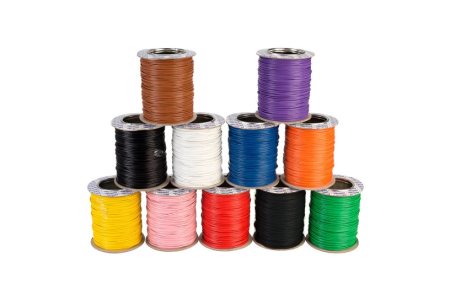

main product photo

Thin Wall Cable Single Core 28/0.30mm 25.0 amps TW2.0 High-temperature low voltage Automotive Cable. Also suitable for marine and allied industries.

  • Resistant to corrosion

  • Hard grade PVC insulation

  • Ideal for high temperature enviroments

  • Resistant to petrol,diesel & diluted acids

Details
High-temperature thin wall cables stand out as versatile low voltage wiring, manufactured for multiple applications in harsh environments such as the automotive and marine sectors, as well as allied industries. It is made from lead-free PVC polymer with hard-grade insulation and copper conductors, making the cable more resistant to petrol, chemicals, abrasion, and corrosion.
It has a reduced insulation thickness and an increased current-carrying capacity, ensuring a noticeable reduction in weight and volume, which aids the application process—particularly relevant as cars become smaller, and complex wiring harnesses require careful space utilisation.
With a wide operating temperature range reaching up to +105°C and on excursions up to +120°C, the thin wall cable is suitable for 12v and 24v systems with a maximum voltage of 60v. It is manufactured in the UK and specified as standard by manufacturers throughout Europe due to its high-performance characteristics.
Features & Benefits:
  • Great resistance to moisture
  • Plain Copper Conductors – PVC Insulated
  • Suitable for 12v and 24v systems (Maximum voltage 60v)
  • Manufactured in accordance with ISO6722-1:2011 (Class B) 105°C
  • Good resistance to petrol, diesel, lubricating oils, and diluted acids
  • Hard grade PVC insulation offers good resistance to abrasion and cut through
  • Suitable for use at temperatures from -40°C to +105°C with excursions up to +120°C
  • Reduced insulation provides considerable savings in weight and volume, especially in large wiring harnesses
Our cable is of high quality and low cost, offering the best results every time. For further information, please contact our Sales team by calling 01942 723101 or emailing [email protected].
More Information
More Information
Quick Search Code 104929
Applications

  • Automotive

  • Marine sectors

  • Allied industries

Specification

  • Conductor Specification (mm): 28/0.30

  • Conductor Cross Section (mm²): 2.0

  • Nominal Current Rating (Amps): 25.0

  • Maximum Overall Diameter (mm): 2.8

  • Manufactured in accordance with ISO6722-1:2011 (Class B)

  • Resistance to petrol, diesel, lubricating oils and diluted acids

  • Suitable for use at temperatures from -40°C to +105°C with excursions up to +120°C

Downloads

Spec Sheet - TW Cable



Thin Wall Cables

Downloads
Thin Wall Single Core Spec Sheet (275.66 kB)
Thin Wall Cables (583.10 kB)
