Z-Type Marker Size 35 = Cable dia 7.9-12.7mm / Cable size 25.0mm²

In stock
Only %1 left
SKU : HZ-35-B/W-MARKING-250pcs
As low as £24.99 £29.99

1 pack of single markings is 250 pcs

The 0-9 set is 2,500 pcs

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Add to Compare
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

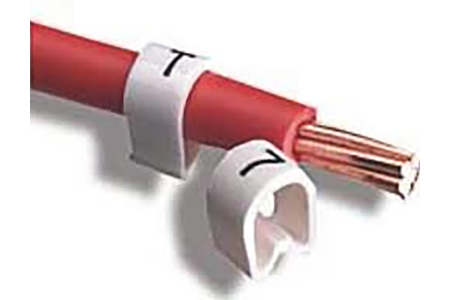

main product photo

Z-Type markers are push-on, individual markers that are used to securely identify wires and tiny cables. They have a gusseted design that allows the marker to fit firmly over a wide range of cable diameters.

Details

For Cable Diameter 7.9mm - 12.7mm

  • Size 35
  • Clear legible mark
  • Applicator tool available for easy installation

The  Z-type cable marker has been designed to allow each size of marker to fit a wide range of cables and are an affordable option for a wide range of commercial wire identification applications. We have multiple cable marker applicators available, for more information please click here.

Features and Benefits:

  • Straight cut
  • Gusseted design
  • Push on markers
  • Colour-coded option
  • Self-extinguishing PVC
  • For cable size 25.00mm²
  • Black marking on White marker
  • Service Temperature: -45°C to +70°C
  • Supplied as straight cut, chevron cut available upon request
  • Excellent resistance to, sea water, detergents, fuels, oils, white and industrial spirits

We can provide further options on the above if you require a bespoke pack of different numbers, letters or symbols. Please contact our sales department on 01942 723 101 or email [email protected] for further information.

More Information
More Information
Quick Search Code 100385
Applications

  • In marine environments, such markers are essential for labeling cables and wires in boats, ships, and offshore platforms

  • In telecommunications networks, such markers help label cables and wires in server rooms, and networking equipment.

  • In data centers and the IT industry, these markers help in labeling cables and wires, aiding in cable management,  and maintenance of complex networking systems.

  • In industrial settings, such markers are used to label cables and wires in machinery and equipment, helping with maintenance, troubleshooting, and repairs.

Specification
For Cable Diameter For Cable Size Marker Size Marker Length
mm mm²   mm
7.9 - 12.7 25.0 35 6.0
Downloads
Z Type Markers Spec Sheet (69.98 kB)
