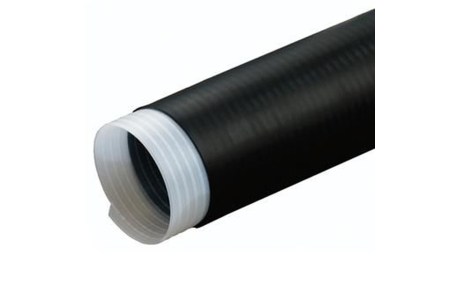

3M Black Cold Shrink Cable Sleeve LO42

Made of EPDM rubber Offering good mechanical, insulation and sealing protection Accommodating a wide range of cable sizes For indoor or outdoor applications

3M Cold Shrink Network Rail cable joints are used for the cable jointing and cable terminating of track feeder cables. Cold shrink insulator designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000V. It is also suitable for insulating secondary splices, direct-buried or submersible and dig-in repairs.

Open-ended tubular sleeve provides ozone, acids and alkalis resistance
Simple installation which requires no tools
Insulates cable or connectors within a diameter range of 0.40 to 0.82in (10.1 to 20.9mm)
2:1 shrink ratio
Environmental sealing for communication and other non-electrical applications

Please click the variations below to add to your product selection

Qty

0 Items in your selection £0.00 Selection Total

Various Pack Sizes

£13.99 £16.79

In stock

SKU

3M-L042-COLD-SHRINK

Buy 5 for £13.49 £16.19 per and save 4%
Buy 10 for £12.99 £15.59 per and save 7%
Buy 20 for £11.99 £14.39 per and save 14%
Buy 30 for £11.49 £13.79 per and save 18%

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

3M LO42 Cold Shrink Inline Joint Termination, Network Rail Approved

3M Cold Shrink Tubes are made from EPDM rubber, expanded onto a removable supporting plastic core providing a permanent radial seal, expanding and contracting with the cable under load conditions.

The 3M Cold Shrink can be used for rail cable sealing, insulation and protection and is approved by Network Rail for live rail terminations and inline cable joints for DC track feeder cable applications.

Physical protection and moisture sealing for high voltage, air-insulated connectors and lugs such as spacer cable and lug connections to bus bar. The seal tight retains its resilience and pressure even after prolonged years of ageing and exposure

3M LO42 Cold Shrink cable sleeving requires no hot-work permit or special tools for installation.

Features and Benefits:

Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splices rated up to 1000V
Simple installation, no torches, heat or tools required
Accommodates a wide range of cable sizes
Resists moisture, acids and alkalis, ozone and ultraviolet light
Directly buriable or submersible
Thick-walled to resist puncture and damage
Ideal for indoor, outdoor or overhead use
Withstands temperatures of -40°F to 194°F (-40 to 90°C)
Applications: 150/240sqmm track feeder cables
Cable joint/termination kit length: 191.0mm
PADS Network Rail approval number: PADS 055/121351
Manufactured from EPDM rubber type

More Information

More Information
Quick Search Code	104574

Applications

Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splices rated to 1000 volts
Suitable for direct burial or submersion
For indoor, outdoor, or overhead use
Physical protection and moisture sealing for high-voltage, air-insulated connectors and lugs such as spacer cable and lug connections to bus bar
Insulation of secondary splices copper or aluminium conductors
Relocation of service
Dig-in repairs
Sheath repairs
Insulation of inline conductor transition connectors
