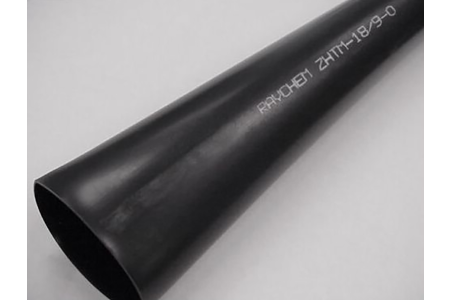

ZHTM - TE Connectivity Zero Halogen Low Fire Hazard Heat Shrink Size 8/4

A flexible, thick-wall, heat­shrinkable tubing with Low Toxicity for Fire Safety Applications. This material exhibits excellent fire safety characteristics combined with low smoke emission and low evolution of acid gases while retaining good mechanical and fluid-resistance properties. Used for insulation and protection of cables, harnesses, and electrical and electronic components in enclosed spaces, such as in marine applications, mass transit systems.

  • 2:1 shrink ratio

  • Low smoke emission

  • System 100 tubing

  • RoHS compliant

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Back

  • Text
  • Number
  • Text & Number

Text Element

Text & Number Element

Number Element

Skip Personalisation | Request a Callback

Order in multiples of 1 mtrs to receive a continuous length, up to the next price break at 5 mtrs

For example, 4 x 1 mtrs will be delivered as a continuous 4 mtr length

As low as £8.99 £10.79
In stock
Only %1 left
SKU
ZHTM-8/4-0-CLS-Black

TE Connectivity Raychem ZHTM - Thick Wall, Heat-Shrinkable Flexible Tubing with Low Toxicity for Fire Safety Applications.

A flexible, thick-wall, heat-shrinkable tubing to be used in conjunction with -100 molded parts and Zerohal cable to form Raychem System 100. This material exhibits excellent fire safety characteristics combined with low smoke emission and low evolution of acid gases while retaining good mechanical and fluid-resistance properties.

Used for insulation and protection of cables, harnesses, and electrical and electronic components in enclosed spaces, such as in marine applications, mass transit systems, and offshore installations, to reduce toxicity risks, or where the equipment would be irreparably damaged by corrosive products of combustion.

Heat-Shrinkable, Flexible Tubing with Low Toxicity for Fire Safety Applications.

Features & Benefits:

  • 2:1 shrink ratio

  • Low smoke emission

  • System 100 tubing

  • RoHS compliant

Installation:

  • Minimum shrink temperature: 80°C [176°F]

  • Minimum full recovery temperature: 121°C [250°F]

Operating Temperature Range

  • -30°C to 105°C
  • [-22°F to 221°F]
More Information
Quick Search Code 104866

Heat­shrinkable tubing to be used in conjunction with -100 molded parts and Zerohal cable to form Raychem System 100. This material exhibits excellent fire safety characteristics corn bined with low smoke emission and low evolution of acid gases while retaining good mechanical and fluid-resistance properties. Used for insulation and protection of cables, harnesses, and electrical and electronic components in enclosed spaces, such as in marine applications, mass transit systems, and offshore installations, to reduce toxicity risks, or where the equipment would be irreparably damaged by corrosive products of combustion.

Installation

Minimum shrink temperature: 80°C [176°F]

Minimum full recovery temperature: 121°C [250°F]

Series: ZHTM

Operating Temperature Range :  -30°C to 105°C [-22°F to 221°F]
