Vidaflex® Monofil PE 20.0mm Bore PET Expandable Braid - Black

In stock
Only %1 left
SKU : VIDAFLEX-PET-20-0-SP 10MTRS
As low as £10.90 £13.08

Prices vary depending on size.

See below for more options.

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Add to Compare
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

  • Buy 5 for £9.38 £11.26 per and save 14%
  • Buy 10 for £8.07 £9.68 per and save 26%

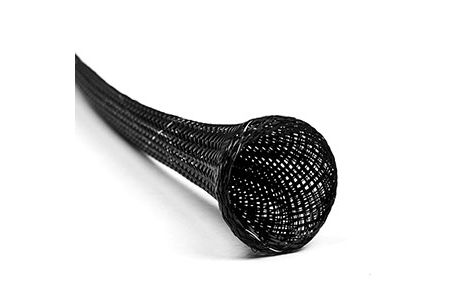

main product photo

Vidalfex® Monofil PE is an expandable close weave sleeving, produced from braided PET monofilaments. This sleeving can be used in motor vehicles for protection of hydraulic hoses, tubing and wiring harnesses and all other applications, especially where cables are connected to moving parts and are and are constantly flexed.

Details
Expandable Braided Sleeving - Vidaflex® Monofil PE 20.0mm Bore

Vidalfex® Monofil PE is an expandable close weave sleeving, produced from braided PET monofilaments. The bore of Vidaflex® Monofil PE sleevings are expandable up to 300% and the particular advantage is the good retention of roundness.
Vidaflex® Monofil PE sleevings offer very good mechanical strength and also provide excellent resistance to salt water, oil, fuels and solvents. It is self-extinguishing and operates at temperatures within the range of – 70°C to +150°C.

Applications
Vidaflex® Monofil PE is used in motor vehicles for protection of hydraulic hoses, tubing and wiring harnesses and all other applications, especially where cables are connected to moving parts and are and are constantly flexed.
The open weave of the sleeving allows branch terminations through the sleeve wall, which greatly speeds up the manufacturing process.
The material should be cut using a hot wire in excess of 250°C. This method bonds the ends of the monofilaments and prevents fraying.



Specifications

Construction: Braided polyethylene terephthalate monofilaments
Operating Temperature Range: -70°C to +150°C
Maximum Short Term Temperature: 200°C
Melting Temperature: 250°C
Yarn Construction: Polyester Monofilaments
Tensile Strength: 100,000 psi
Elongation: 20%
Specification Gravity: 1.31
Moisture Absorption after 24 hours: 0.08%
Shrinkage @ 180°C: 4%
Flammability Test, UL224: VW-1





More Information
More Information
Quick Search Code 104734
Applications
Vidaflex Monofil PE is used in motor vehicles for protection of hydraulic hoses, tubing and wiring harnesses and all other applications, especially where cables are connected to moving parts and are and are constantly flexed.
Specification
Construction: Braided polyethylene terephthalate monofilaments Operating Temperature Range: -70°C to +150°C Maximum Short Term Temperature: 200°C Melting Temperature: 250°C Yarn Construction: Polyester Monofilaments Tensile Strength: 100,000 psi Elongation: 20% Specification Gravity: 1.31 Moisture Absorption after 24 hours: 0.08% Shrinkage @ 180°C: 4% Flammability Test, UL224: VW-1
