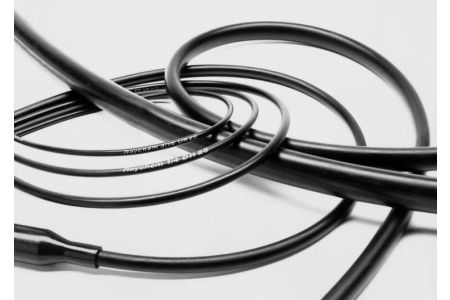

DR-25 TE Connectivity Diesel Resistant Heat Shrink Tubing

In stock

Only %1 left

SKU : DR-25 Diesel Resistant Heat Shrink

As low as £12.49 £14.99

Order in multiples of 1 mtrs to receive a continuous length, up to the next price break at 5 mtrs

For example, 4 x 1 mtrs will be delivered as a continuous 4 mtr length

Please click the variations below to add to your product selection

Qty

0 Items in your selection £0.00 Selection Total

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DR-25 Series Raychem 2:1 Ratio Flame Retardant Heat Shrink is flexible and abrasion resistant. Specially formulated for optimum high-temperature fluid resistance and long-term heat resistance. Resistant to aviation and diesel fuels, hydraulic fluids and lubricating oils.

Details

DR-25-1-1/2-0-SP TE Connectivity Diesel Resistant Heat Shrink Tubing size 1 1/2" (38.1mm)

Flame Retardant
Flexible
Abrasion-resistant
2:1 Shrink Ratio

DR-25 heat shrinkable tubing is flexible and abrasion-resistant. It is made from a radiation crosslinked elastomeric material specially formulated for optimum high-temperature fluid resistance and long term heat resistance.

The operating temperature for DR-25 tubing is from -75°C to + 150°C for long periods. Shrinking to 50% of its supplied diameter when heated, 10 standard sizes of tubing will cover the diameter range from 1.6mm to 70mm.

Suitable as a jacketing material for military vehicle cables and harnesses. It is also well suited for the demands of motorsport cable harnesses. When used in conjunction with system 25 heat-shrinkable moulded shapes and S1125 high-performance adhesive, these products provide a complete cable harness system.

Specially formulated for optimum high-temperature fluid resistance and long term heat resistance. Resistant to aviation and diesel fuels, hydraulic fluids and lubricating oils.

Features & Benefits:

System 25 tubing
Excellent Electrical, Chemical, and Physical Properties
Operating temperature range -75°C to + 150°C
Dielectric strength - 8 kV/mm minimum
RoHS compliant

Applications

Suitable as a jacketing material for military vehicle cables and harnesses.
It is also ideal for the demands of motorsport cable harnesses.

When used in conjunction with system 25 heat-shrinkable moulded shapes and S1125 high-performance adhesive, these products provide a complete cable harness system.

Specification
