Sleeving Screening Braid MBS 95-30.0mm (Ray-101.30.0-Eqv)

In stock
SKU : HTP-MBS-95-30.0-TCB
£11.49 £13.79

Various Pack Sizes available

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Add to Compare
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

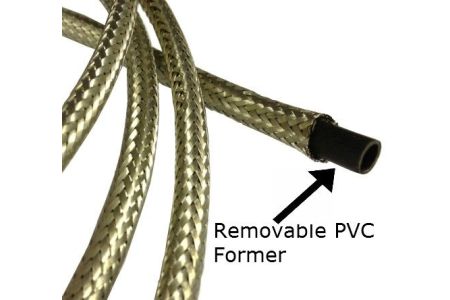

main product photo

Equivalent to RAY-101-30.0

Optimum screening performance is obtained using Copper wire braid that can also be used for earth continuity purposes. Provide's sensitive cables with an EMC screen to shield them against electromagnetic, electrostatic and radio frequency interference.

  • Very flexible

  • Abrasion prevention

  • Excellent expansion ratios

  • Optimum screening performance

Details

 The primary use of wire sleeving braid is to provide sensitive cables with an EMC screen to shield them against electromagnetic, electrostatic and radio frequency interface.

Optimum screening performance is obtained using copper wire braid that can also be used for earth continuity purposes.

Nickel-plated copper is suitable for use at elevated temperatures and for harsh environments or where abrasion is likely to be encountered, stainless steel or galvanised wire is an option.

Features & Benefits:

  • Industry standard coverage of 90% or 95%
  • Wide range - from 2mm up to 70.0mm Ø
  • Excellent expansion ratios
  • Normally supplied on removable PVC former
  • Also available off former in flat form
  • Options for bespoke requirements
  • Sample packs available for prototyping
  • Packed on reels
  • Option to supply in pre cut lengths

Choice of Materials:

Electro tin-plated copper – This Is the standard material that the Metal Braided Sleeve is supplied in, if you require one of the below alternatives please contact us.

  • Nickel-plated copper
  • Stainless steel
  • Galvanised steel
  • Alternative non-ferrous & ferrous materials on request

Our Sleeving Braid is of High Quality and Low Cost that gives you the best results every time. For further information please contact our sales team on Call 01942 723101 or e-mail on [email protected]

More Information
More Information
Quick Search Code 103215
Applications

  • Mechanical support

  • EMC & EMH applications

  • Protection against abrasion and corrosion

  • Screening of cables from electromagnetic, electrostatic and RF interference

Specification
Reference Former O/D Min Optical Coverage Wire ⌀ Min Usable ⌀ Max Usable ⌀ Approx weight KG per 100m (ex-former)
  MM   MM MM MM
MBS 95 3.0  3.0 95% 0.10 2.5 5.0 1.25
MSB 95 4.0 4.0 95% 0.13 3.5 7.5 2.20
MSB 95 6.0 6.0 95% 0.13 4.5 9.5 2.80
MBS 95 7.5 7.5 95% 0.13 7.0 14.0 4.40
MBS 95 10.0 10.0 95% 0.13 8.0 22.0 5.0
MBS 95 12.5 12.5 95% 0.13 11.0 24.0 7.50
MBS 95 20.0 20.0 95% 0.13 16.0 38.0 10.00
MBS 95 25.0 25.0 95% 0.13 22.0 38.0 11.25
MBS 95 30.0 30.0 95% 0.16 27.0 40.0 19.30
MBS 95 35.0 35.0 95% 0.16 30.0 50.0 20.00
MBS 95 40.0 40.0 95% 0.20 35.0 60.0 33.00
MBS 95 50.0 50.0 95% 0.30 45.0 65.0 35.00



Downloads
Spec Sheet (572.22 kB)
