Flexible Nylon Hose Tubing Standard Wall 10.0mm O/D x 7.0mm I/D x 1.5mm Wall Yellow

In stock
Only %1 left
SKU : HTP-NY-7.0-10.0-NYLON-YELLOW
Made in Britain
As low as £79.99 £95.99

Prices vary depending on size/pack size. Please select from one of the options

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Add to Compare
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

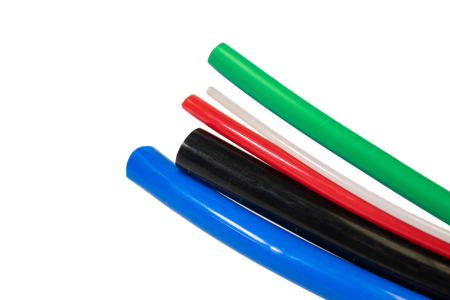

main product photo
Wall thickness from 1.25mm to 1.5mm. Manufactured with a flexible, plasticised, high viscosity extrusion grade of Polyamide 12 (PA12) which is impact modified and heat and UV stabilised. Our Flexible Nylon is therefore low weight, flexible, and of low density
Details

Flexible Nylon Hose Tubing Standard Wall (1.25mm to 1.5mm Wall)

  • Low density

  • Heat and UV stabilised

  • Flexible & Lightweight

  • Great chemical resistance

Our Flexible Nylon Hose Tube is supplied in a range of up to 11 colours, and natural (opaque). Other colours are available by request.

Manufactured with a flexible, plasticised, high viscosity extrusion grade of Polyamide 12 (PA12) which is impact modified and heat and UV stabilised. Our Flexible Nylon is therefore low weight, flexible, and of low density.

The recommended operating temperatures for Flexible Nylon are between -40°C and +80°C constant and up to +110°C intermittent. The material has a working pressure of 388 PSI (27 Bar) with a burst pressure of 1554 PSI (109 Bar).

The Flexible Nylon Hose Tubing has good chemical resistance to Bleach when in ambient temperatures of 20°C, but is rated poor resistance when in temperatures of 60°C so temperature must be taken into account.

We stock a comprehensive range of Flexible Nylon Tube PA12 from 1.5mm I/D to 28mm O/D in metric sizes.

All our (PA12) Flexible Nylon tubing conforms to the following standards:

  • ISO 7628

  • DIN 74323

  • DIN 73378

  • S.M.M.T C2C

  • ISO-TC 22SC/2

  • BS 5409 (Part 1)

  • SAE J844 (Type A)

  • SAE J1394 (Type A)

  • DIN 74324 (Parts 1 & 2)

Need a smaller diameter or can't see what your looking for? Contact our Sales team on 01942 723 101 or e-mail on sales@hilltop-products.co.uk

More Information
More Information
Quick Search Code 104660
Applications

Suitable for a wide variety of Applications:

  • Industrial pneumatics

  • Instrumentation

  • HGV

  • Automotive

  • Vending

  • Fluid Handling

  • Robotics

  • Automation

  • Machine Tool

  • Lubrication

  • Petroleum-based chemical transfer

  • Pest control

  • Fluid Handling

Specification

Temperature Range

Temperature range: -40;C to +80°C contiuous and +110°C intermittent.

Working Pressures

This figure is based on the theoretical burst pressure at 20°C, using a safety factor 4:1. Any increase in temperature above 20°C will result in a decrease in pressure capabilities.

1 BAR =approx. 14.5 PSI

All our (PA12) Flexible Nylon Tubing conforms to the following standards:

  • BS 5409 (Part 1)

  • S.M.M.T C2C

  • SAE J1394 (Type A)

  • SAE J844 (Type A)

  • DIN 73378

  • DIN 74323

  • DIN 74324 (Parts 1 & 2)

  • ISO-TC 22SC/2

  • ISO 7628



Downloads
File Icon Flexible Nylon Hose Tubing Spec Sheet (430.29 kB)
