DERAY I3000 Thin Wall Crosslinked Polyolefin Orange - Size 9.5/3.0

In stock
Only %1 left
SKU : DERAY-I3000-9.5/3.0-3-SP
Not Set
As low as £3.68 £4.42

Various Quantities and Sizes Available

See above for more options

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Add to Compare
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

  • Buy 5 for £2.39 £2.87 per and save 4%
  • Buy 10 for £2.25 £2.70 per and save 10%
  • Buy 25 for £1.99 £2.39 per and save 20%
  • Buy 50 for £1.65 £1.98 per and save 34%
  • Buy 75 for £1.49 £1.79 per and save 40%
  • Buy 150 for £1.35 £1.62 per and save 46%

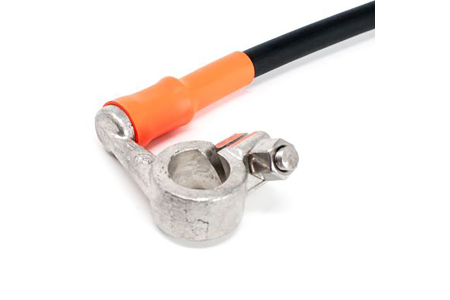

main product photo

9.5mm shrinking down to 3.0mm. (Laid Flat Size = 15.0mm)

Thin wall crosslinked polyolefin with a 3:1 shrink ratio, flexible heat shrink tubing with excellent physical and mechanical properties.

  • Resistant to common fluids and solvents

  • Excellent physical and electrical performance

  • High shrink ratio

  • Self-extinguishing (colours only)

Details

9.5mm shrinking down to 3.0mm. (Laid Flat Size = 15.0mm)

DERAY I3000 is a premium heat shrink tubing, the ultimate solution for insulating, protecting, and organizing your electrical connections with ease and precision. Crafted from high-quality polyolefin material, this heat shrink tubing offers exceptional durability and heat resistance, ensuring long-lasting performance in even the most demanding environments. Whether you're a professional electrician or a DIY enthusiast, this heat shrink tubing provides a reliable solution for bundling wires, sealing splices, and adding an extra layer of protection against moisture, chemicals and abrasion.

Experience hassle-free application with Derays 3:1 ratio heat shrink tubing, allowing for a snug fit around irregular shapes and sizes. Simply slide the tubing over your wires or cables, apply heat using a heat gun or torch, and watch as it shrinks uniformly to create a tight seal. Available in various sizes and colours, DSG's heat shrink tubing caters to a wide range of applications, from automotive repairs and marine installations to electronics projects and beyond. Upgrade your electrical workbench with this versatile heat shrink tubing and enjoy enhanced durability, insulation, and peace of mind for your projects.

Features and Benefits:

  • Flexible
  • Shrink Ratio: 3:1
  • Provides strain relief
  • Shrink Temperature: 90°C min
  • Continuous operating temperature: -55°C to +135°C
More Information
More Information
Quick Search Code 104897
Applications

  • Electrical insulation of in-line splices

  • Strain relief of terminals

  • Colour coding of electronic components

  • Insulation and protection of objects with large diameter variations

Specification
Internal Dia (MIN)  Internal Dia (MAX)  Total Wall Thickness (NOM)
mm (in) mm (in) mm (in)
3.2 (1/8) 1.0 (0.039) 0.55 (0.022)
4.8 (3/16) 1.5 (0.059) 0.60 (0.024)
6.4 (1/4) 2.0 (0.079) 0.65 (0.026)
9.5 (3/8) 3.0 (0.118) 0.75 (0.030)
12.7 (1/2) 4.0 (0.157) 0.75 (0.030)
19.0 (3/4) 6.0 (0.236) 0.85 (0.033)
25.4 (1) 8.0 (0.315) 1.0 (0.039)
38.0 (1 1/2)  13.0 (0.512) 1.15 (0.045)















Downloads
File Icon DERAY I3000 Datasheet (1.22 MB)
