DR-25-TW-3/16-0-SP Thin Wall Diesel Resistant Heat Shrink Tubing size 3/16" (4.8mm down to 2.4mm)

In stock

Only %1 left

SKU : DR-25-TW-3/16-0-SP

As low as £8.99 £10.79

Order in multiples of 1 mtrs to receive a continuous length, up to the next price break at 5 mtrs

For example, 4 x 1 mtrs will be delivered as a continuous 4 mtr length

Please click the variations below to add to your product selection

Qty

0 Items in your selection £0.00 Selection Total

Skip to the end of the images gallery

Skip to the beginning of the images gallery

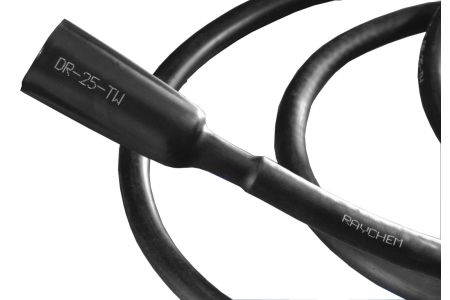

DR-25-TW is a flexible, fluid resistant elastomeric tubing. Developed from DR-25, this thin wall version is ideal for use where space and weight saving are important. It also offers excellent resistance to fluids at high temperature and to long-term heat exposure.

This robust and flexible thin wall heat shrink tubing protects wires and cables against damage from chemicals, abrasion and fluids.

For bulk quantities please contact our Sales Team on 01942 723101.

Show less

Details

DR-25-TW-3/16-0-SP Thin Wall Size 3/16" (4.8mm down to 2.4mm)

Lightweight and thin wall
Excellent chemical & solvent resistance
Compatible with ‘System 25’ components
Excellent abrasion & mechanical protection

DR-25-TW is a flexible, fluid-resistant elastomeric tubing. Developed from DR-25, this thin wall version is ideal for use where space and weight saving are important. It also offers excellent resistance to fluids at high temperatures and to long-term heat exposure.

This robust and flexible thin wall heat shrink tubing protects wires and cables against damage from chemicals, abrasion and fluids. It is ideal for use in high-temperature environments as it has been specially designed for long-term heat resistance and is flame retardant.

Wall thickness will be less if tubing recovery is restricted during shrinkage.

Please note: All dimensions in millimetres, unless other stated for this and the following page.

Features and Benefits:

Thin-walled
Shrink ratio: 2:1
RoHS, ELV Compliant
Flexible, flame retardant
Radiation crosslinked elastomer material
Offers excellent protection and insulation
Operating temperature: -75°C to +150°C
Minimum full recovery temperature: +175°C
Excellent resistance to diesel, lubricating oil and hydraulic oil property

More Information

More Information
Quick Search Code	104849

Applications

When used in conjunction with System 25 heat-shrinkable moulded shapes and S1125 high-performance adhesive, these products provide a complete cable harness system.

Specially formulated for optimum high-temperature fluid resistance and long-term heat resistance.
Resistant to aviation and diesel fuels, hydraulic fluids and lubricating oils.
Particularly suitable as a jacketing material for vehicle cables and harnesses.
It is also well suited for the demands of motorsport cable harnesses.

Specification

Sleeve Diameter: 3.2-31.5mm

Shrunk Diameter: 1.6-15.0mm

Colour: Black

Sleeve Type: Heat Shrink

Shrink Ratio: 2:1

Material: Elastomer

Flame Retardant: Yes

Halogen Free: No

Standards Met: ELV, EU, RK-6008/2, VG 95343 Part 5 Type D

Minimum shrink temperature: +150ºC

Minimum full recovery: +175ºC
