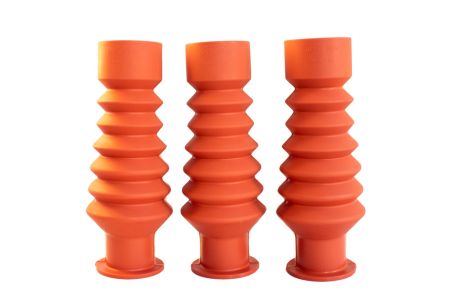

Raychem Universal Cold Applied Boot Kit of 3 - SMOE62804

TE-Connectivity (TE Connectivity) SMOE 62804 17.5kV also known as RCAB4120

Used in switchgear and transformers where the clearances are insufficient for operation in air or to protect against flash-over due to extreme humidity.Insulating boots for straight or right angle applications.

  • Supplied in a pack of Three Boots with Silicone Grease included.

  • Elbow Insulating Boot, Straight Insulating

  • Boot400A Bushing Type

  • Designed to suit bushing diameters 31-70mm


Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Back

  • Text
  • Number
  • Text & Number

Text Element

Text & Number Element

Number Element

Skip Personalisation | Request a Callback

Various Pack Sizes available

As low as £119.99 £143.99
In stock
Only %1 left
SKU
SMOE62804
  • Buy 2 for £128.69 £154.43 per and save 3%
  • Buy 3 for £124.99 £149.99 per and save 5%

SMOE62803 and SMOE62804 - Raychem cold-applied insulating boots for straight or right angle applications. Also known as RCAB4120.

Product name Bushing diameter (mm)
SMOE6804 31-45
SMOE6803 46-70



The SMOE-Type Boot consists of a one-piece anti-tracking body and suits angles between 90 and 180 degrees. These boots are used in various professional fields for their excellent resistance and strength whilst maintaining the flexibility to be applied at varying angles. These boots are commonly used to increase creepage distances between live metals and surrounding metals to ensure maximum electrical safety is guaranteed. They are also used in switchgear and transformers where the clearances are insufficient for operation in air or to protect against flashover due to rodent interference or extreme humidity. The boots can also be easily applied straight rather than at a right angle/ They can just as easily be removed, too as they contain 0 mastic components.

Application

  • Apply a thin layer of silicone grease onto the application

  • Slide the boot onto the application with more ease once grease is applied.

  • Apply more grease to the bushing and connect the cable lugs

  • Push the boot upwards over the bushing and as far as possible.

Features:

  • Tool free application

  • High performance insulation material

  • Excellent track and erosion resistance

  • The connection can be energised immediately after installation

  • Brushing kit available for smaller bushing styles.

  • Easy to remove and install (no mastic components)

Used in switchgear and transformers where the clearances are insufficient for operation in air or to protect against flashover due to rodents or extreme humidity.

Specifications

 Minimum Cable SizeMaximum Cable SizesMaximum Voltage
  10mm2 400mm2 33kV

TE-Connectivity SMOE 62804 boot kit properties:

  • Min. conductor size: 35mm2

  • Max. conductor size: 400mm2

  • Bushing diameter: 31-70mm

More Information
Quick Search Code 104846
  • Indoor application
  • Used to improve air clearance in cable boxes to improve phase-to-phase and phase-to-ground insulation

CONFORMS TO: Tested in accordance to CENELEC HD.629.1

Product name Bushing diameter (mm)
SMOE6804 31-45
SMOE6803 46-70
