RNF-100-3/8-4 TE Connectivity Premium Heat Shrink size 9.5mm Yellow

In stock
SKU : RNF100-3/8-4-SP
£1.99 £2.39

Order in multiples of 1 mtrs to receive a continuous length, up to the next price break at 5 mtrs

For example, 4 x 1 mtrs will be delivered as a continuous 4 mtr length

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Add to Compare
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

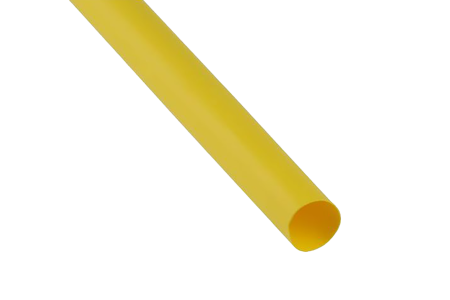

main product photo

RNF100 is flexible, flame-retardant, polyolefin tubing designed to provide superior mechanical (abrasion, cut-through, and strain relief), thermal, and fluid-resistance performance in demanding environments.

Details

TE Connectivity Premium Heat Shrink size 9.5mm Yellow

  • Flexible
  • Fluid Resistant
  • 2:1 Shrink Ratio
  • Superior Abrasion and Solvent Resistance

Designed to provide superior mechanical (abrasion, cut-through, and strain relief), thermal, and fluid-resistance performance in demanding environments. Widely used to provide insulation and strain relief of wire terminations and connections. Used for jacketing wire bundles and light-duty harnesses where superior abrasion resitance is a plus. Also used to identify and colour-code electrical connections and wire bundles.

Features and Benefits:

  • 2:1 shrink ratio
  • RoHS Compiant
  • Flame-retardant (colours only)
  • Wide range of sizes and colours
  • Flexible: conforms to irregular shapes
  • Min Shrink Temperature: 95°C (203°F)
  • Min Full Recovery Temperature: 121°C (250°F)
  • Operating Temperature Range: -55°C to 135°C (-67°F - 275°F)
  • Superior abrasion and solvent resistance when compared with that of many flexible, general purpose polyolefin tubings
  • Excellent physical, chemical, and electrical properties that meet or exceed industrial and military standards for highly reliable, general purpose tubing.
Applications

Widely used to:

  • Provide insulation and strain relief of wire terminations and connections.

  • Used for jacketing wire bundles and light-duty harnesses where superior abrasion resistance is a plus.

  • Also used to identify and colour code electrical connections and wire bundles.

Specification

Inside DIA: MIN Expanded as supplied:

 9.5mm

Inside DIA: MAX Recovered after heating:

 4.8mm

Recovered Wall Thickness after heating:

0.64 ± 0.08mm



Wall thickness will be less if tubing recovery is restricted during shrinkage.

Downloads
RNF 100 Specification Sheet (156.12 kB)
