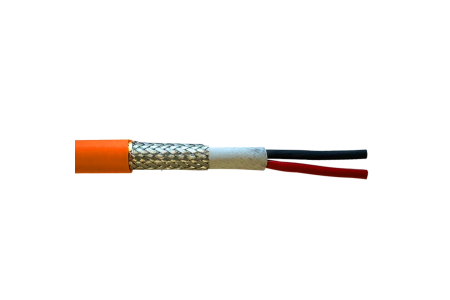

4mm 2 Core Multi Stranded Coroplast 9-2641 Electric Vehicle Cable from premium German manufacturer Coroplast. High voltage (HV), silicone insulated, twincore multi-stranded automotive cable for use in electric and hybrid vehicles for component interconnection.

Details

Connection of HV batteries and electric engines (max. 600 V AC / 1,000 V DC)

This shielded orange cable is suitable for automotive electric powertrain HV connector assemblies, including KERS and ERS (Energy Recovery Systems). It also combines high voltage load handling, EMC shielding and exceptional flexibility required for various automotive applications. Insulated screened orange HV cable for use on electric and hybrid vehicles.

Specification:

Coroplast 9-2641
Red & Black Cores.
Suitable for Max 600V AC / 1000V DC
Plain copper conductors
Tinned copper screening braid and ALU-PET foiled shielding fro excellent EMC performance
Silicone rubber insulated
Suitable for use at temperatures from -40°C to +180°C with excursions up to 205°C
Low cross-sectional area for any application, reducing weight and construction room
Technical data sheet available on request
The conductor specifications shown are representative configurations. Actual cable strand may differ slightly

More Information

More Information
Quick Search Code	104979

Specification

Coroflex	CORES		CORE		OUTER SHEATH		RESISTANCE (d.c. 20 °C) (max.)		CABLE WEIGHT
TYPE NO.	NO.	SIZE	DIAMETER [mm]		DIAMETER [mm]	CONDUCTOR [mΩ/m]	SCREEN [mΩ/m]	approx. [g/m]
9-2641	2 x	2.5 mm²	3.00	-0.3	9.90	-0.6	7.8	6.5	160
9-2641	3 x	2.5 mm²	3.00	-0.3	10.40	-0.6	7.8	7.7	186
9-2641	4 x	2.5 mm²	3.00	-0.3	11.10	-0.6	7.8	7.0	223
9-2641	5 x	2.5 mm²	3.00	-0.3	12.10	-0.6	7.8	5.3	271
9-2641	2 x	4.0 mm²	3.70	-0.3	11.30	-0.6	4.8	6.1	220
9-2641	3 x	4.0 mm²	3.70	-0.3	12.10	-0.6	4.8	5.3	268
9-2641	4 x	4.0 mm²	3.70	-0.3	13.30	-0.6	4.8	4.4	330
9-2641	5 x	4.0 mm²	3.70	-0.3	14.50	-0.6	4.8	3.2	410
9-2641	2 x	6.0 mm²	3.70	-0.3	12.80	-0.6	3.2	5.4	290
9-2641	3 x	6.0 mm²	3.70	-0.3	14.10	-0.6	3.2	3.4	390
9-2641	4 x	6.0 mm²	3.70	-0.3	15.10	-0.6	3.2	3.4	453
9-2641	5 x	6.0 mm²	3.70	-0.3	16.30	-0.6	3.2	3.1	540
